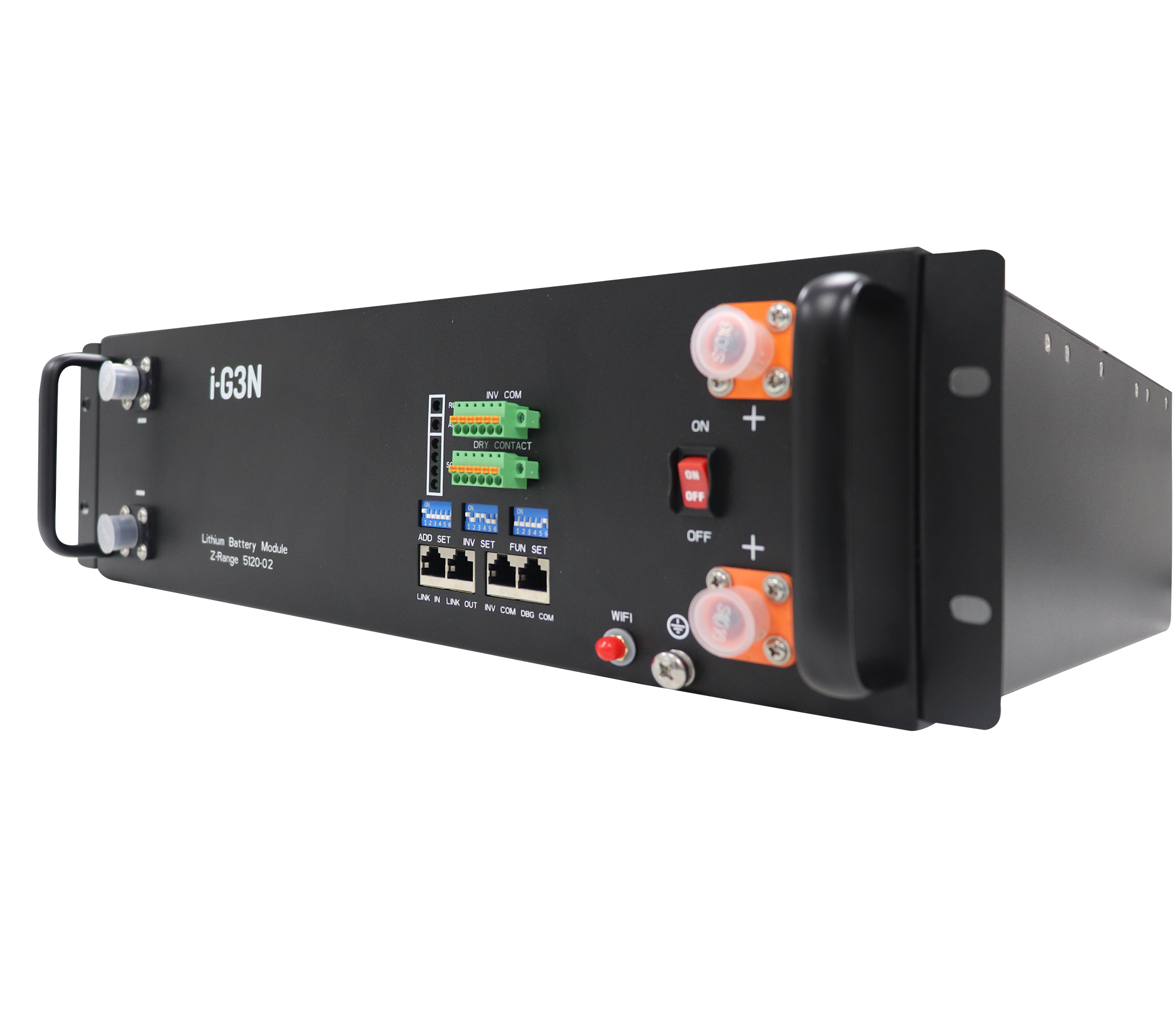

Z-Range Battery
Compact and Reliable Home Backup
Introducing the Z-Range module, a high-end 48V backup system designed for residential use.
This compact solution features:
• High-performance Lithium-ion cells
• Advanced design for efficient conversion and intelligent control
• Automatic battery balance and real-time monitoring
The battery management system (BMS) automatically balances the control according to the state of the single battery to ensure the consistency and safety of the battery. The internally designed BMS can protect the battery under abnormal conditions such as extreme operating temperatures, and big loads.
Vertical industrial integration ensures that the product service life can reach more than 4000 cycles. Modular design allows capacity customization according to customer needs. The RS485 and CANbus communication can be matched with global mainstream brands photovoltaic inverters, such as SMA, Studer, Victron, Goodwe, Growatt, Solis, Sofar, Sermatec, Sunsynk, and Schnider Electric.
Low Voltage Voltage
The Z-Range has been designed to represent the next generation of Residential lithium iron phosphate batteries
Flexible configuration

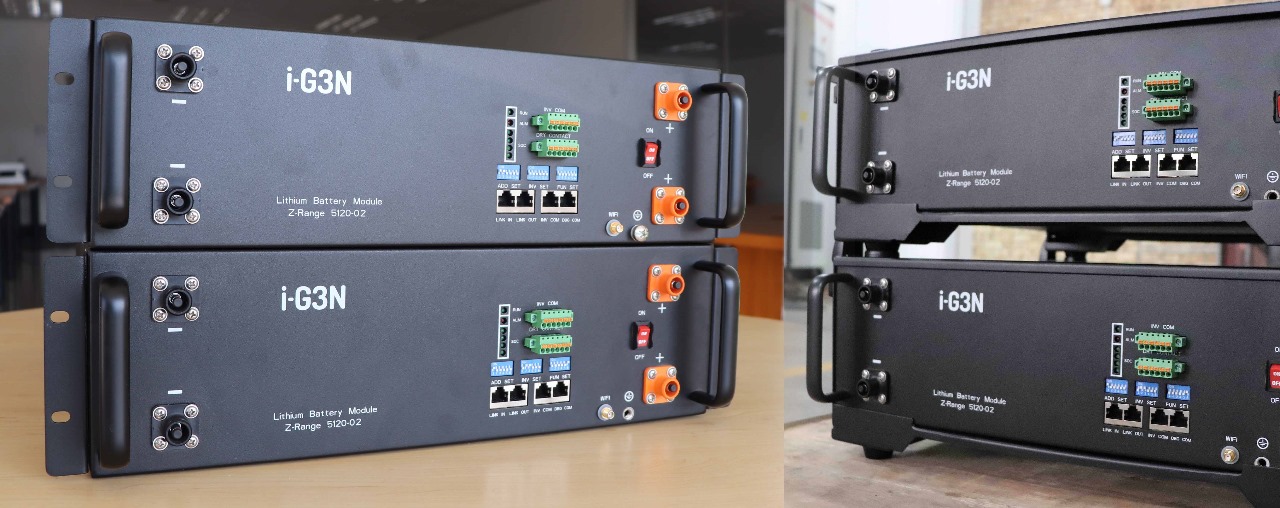

Multiple battery modules can be in parallel for expanding capacity and power, up to 63 batteries in parallel.
Safe & Reliable
The Z-Range has been designed to represent the next generation of Residential lithium iron phosphate batteries
Up-to 32 kWh
The Giga-Rack has been designed to represent the next generation of commercial and industrial lithium iron phosphate batteries
| Z-Range | ||||||||
|---|---|---|---|---|---|---|---|---|
| Cell Type | Lithium-Ion Phosphate (LiFePO4) battery | |||||||
| Nominal Capacity [kWh] | 5.120 | |||||||
| Usable capacity 80% DoD [kWh] | 4.096 | |||||||
| Design life | 10+ Years @25°C 80%DOD | |||||||
| Warranty | 10 years (4000 cycles) @ 25°C | |||||||
| Nominal capacity [Ah] | 100 | |||||||
| Paralles function | Supports 15 units in parallel (76.8kWh) | |||||||
| Nominal voltage [V] | 51,2 | |||||||
| Maximum charge / discharge current (continuous) [A] | <100 | |||||||
| Peak charge / discharge current (not continuous - 3sec) [A] | <100 | |||||||
| Operating voltage range [v] | 47 ~ 56 | |||||||
| Operating charge temperature | (0°C~+45°C) | |||||||
| Operating discharge temperature | (-10°C~+45°C) | |||||||
| Protection class | IP55 | |||||||
| Safety | Safest LFP design with BMS protection built in | |||||||
| Max. Charge/Discharge Current (cont.) [A] | 200 | |||||||
| BMS | BMS system with safety & multi-level fault decetion - multi inverter pairing CAN bus | |||||||
| Cell thermal management | BMS controlled | |||||||
| Certification | UN 3480, CE, TUV, IEC 62619 | |||||||
| Dimensions [mm] (W x H x L) | 408(L)*440(W)*132(H) | |||||||
| Weight [kg] | 45 ± 1 | |||||||
| Communication | CAN / Wi-Fi & RS485 | |||||||
Flexible
- Compact & Compact Design
- Easy to install and maintain
- Modular and scalable
- Parallel connection up to 15 units
Safe & Reliable
- Advanced BMS protection
- High quality LiFePO4 cells
- Thermal management system
- Multiple safety certifications
Smart Management
- Remote monitoring via WiFi
- Real-time performance data
- CAN bus communication
- Compatible with major inverters
Eco-Friendly
- Long cycle life
- High energy efficiency
- Low environmental impact
- Recyclable materials
High Performance
- 5.12 kWh nominal capacity
- 100Ah battery capacity
- Fast charging capability
- High discharge rate
Flexible Design
- Modular configuration
- Parallel connection up to 15 units
- 19-inch rack mountable
- Compact footprint
Safe & Reliable
- Advanced BMS protection
- High quality LiFePO4 cells
- Thermal management system
- Multiple safety certifications
Smart Management
- Remote monitoring via WiFi
- Real-time performance data
- CAN bus communication
- Compatible with major inverters
